Tune SB45 Skyline 2.0 Disc

Categories: ,

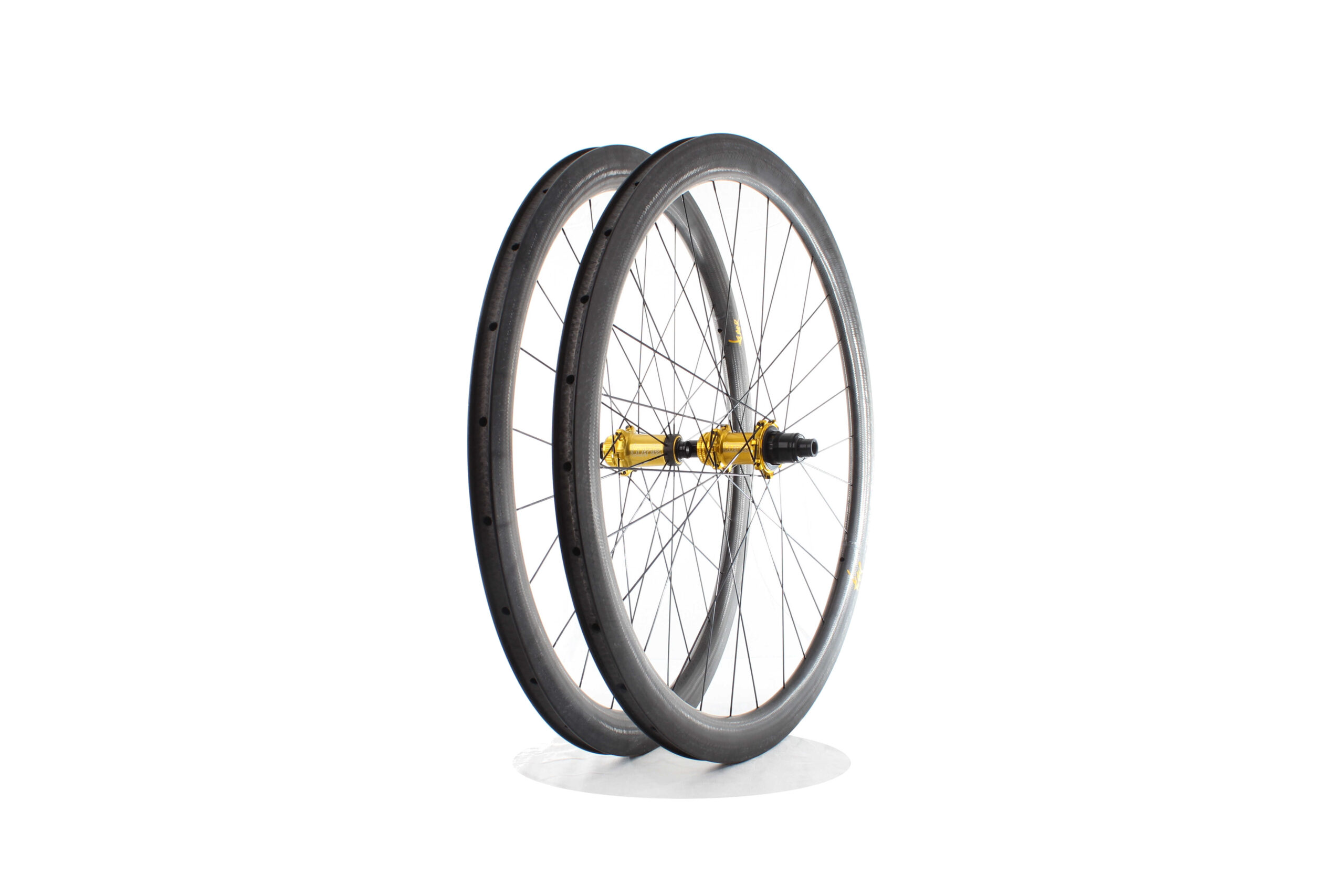

Tune Schwarzbrenner 45 Skyline Disc 2.0

The Schwarzbrenner 45 Skyline is the lightest Aero wheelset for disc brakes in the Tune range. With only 1367 grams in weight and its aerodynamic rim profile, it is the first choice for both the high mountains and the lowlands. Its 45 mm high rims are very well manageable even in crosswinds. To achieve the highest possible quality standard, the carbon rims are made by a braiding robot. They have an extremely high impact strength, which is why they also put away potholes easily.

The Prince / Princess Skyline hubs convince with their low weight and the extravagant look. Their Straightpull hub flanges for un-cranked spokes provide better power transfer of braking and driving forces to the rim. The installed ceramic bearings reduce the frictional resistance of the hubs and help you save one or the other watt. Of course, the hubs are available in all Tune Eloxal colors. The wheelset is spruced up with Sapim CX-Super knife spokes. To meet the highest quality standards, the wheelset at Tune in the Black Forest is built by hand and centered.

Technical specifications:

intended use : Road bike
Impeller size: 28 ”
Rim type: wire and folding tire
Brake type: only for disc brake
Brake Disc Mount: Center Lock
Material rims: Carbon
Inner width: 17 mm
Outer width: 27 mm
Rim height: 45 mm
Number of holes: 24/28 holes
Spokes: Sapim CX-Ray
Registration pattern: front 2-fold crossed / radial | crossed in the back 3 times
Hubs: Tune Princess Skyline | Prince skyline
axle type front: 5×100 mm quick release
axle type back: 5×135 mm quick release
Front bearing : 2x ceramic bearings
Rear bearing : 1x ceramic bearings, 3x industrial bearings
Gasket: sealed twice
Freewheel compatibility: 10-, 11-, 12-speed Campagnolo
Freewheel Type: 3 pawls, 27 detent points
Recommended tire width: 23-33 mm
Max. Air pressure: 23 mm – 8.5 bar, 25 mm – 8 bar, 28 mm – 7.5 bar, 33 mm – 5 bar
maximum system weight: 100 kg (driver, bike, clothes and possibly luggage)
tubeless capable: yes
Valve hole: Presta valve (SV)
Finish: 3K carbon, matt
Color decor: according to the selected hub color
Color hubs: black, red, blue, gold, poison green, orange or silver

Weight according to manufacturer: 1367g
